Hi, today I would like to show you how to solve easy RE CTF and how to start with RE, my directory after finish all challenges looks following:
$ tree
.
├── crackme_1
│ ├── crackme1
│ └── flag.txt
├── crackme_2
│ ├── crackme2
│ └── flag.txt
├── crackme_3
│ ├── crackme3
│ └── flag.txt
├── crackme_4
│ ├── crackme4
│ ├── flag.txt
│ └── gdb_cmd
├── crackme_5
│ ├── crackme5
│ ├── flag.txt
│ ├── preload.c
│ └── preload.so
├── crackme_6
│ ├── crackme6
│ └── flag.txt
├── crackme_7
│ ├── crackme7
│ └── flag.txt
└── crackme_8
├── crackme8
├── flag.txt
└── gdb_cmd
Before we start I would recommend following software
And you can find this game here. Now let’s look deeper on each of the challenge.
crackme_1
$ file crackme1
crackme1: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=672f525a7ad3c33f190c060c09b11e9ffd007f34, not stripped
Okay, file is ELF, now we try to run it.
$ ./crackme1
flag{not_that_kind_of_elf}
:) It is enough to run it, nothing special so far.
crackme_2
$ file crackme2
crackme2: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=b799eb348f3df15f6b08b3c37f8feb269a60aba7, not stripped
$ ./crackme2
Usage: ./crackme2 password
$ ./crackme2 aaa
Access denied.
Let’s look strings in binary
$ strings crackme2
/lib/ld-linux.so.2
libc.so.6
_IO_stdin_used
puts
printf
memset
strcmp
...
Usage: %s password
super_secret_password
...
.got.plt
.data
.bss
.comment
Nice, we probably have password, let’s try it
$ ./crackme2 super_secret_password
Access granted.
flag{if_i_submit_this_flag_then_i_will_get_points}
Great, second flag is ours.
crackme_3
$ file crackme3
crackme3: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, for GNU/Linux 2.6.24, BuildID[sha1]=4cf7250afb50109f0f1a01cc543fbf5ba6204a73, stripped
$ strings crackme3
/lib/ld-linux.so.2
__gmon_start__
libc.so.6
_IO_stdin_used
puts
strlen
malloc
...
Usage: %s PASSWORD
malloc failed
ZjByX3kwdXJfNWVjMG5kX2xlNTVvbl91bmJhc2U2NF80bGxfN2gzXzdoMW5nNQ==
Correct password!
Come on, even my aunt Mildred got this one!
ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/
...
.got.plt
.data
.bss
.comment
There is a string encoded by base64
$ echo "ZjByX3kwdXJfNWVjMG5kX2xlNTVvbl91bmJhc2U2NF80bGxfN2gzXzdoMW5nNQ==" | base64 -d
f0r_y0ur_5ec0nd_le55on_unbase64_4ll_7h3_7h1ng5
Just couple of seconds and thirdth flag is on our side.
crackme_4
$ file crackme4
crackme4: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 2.6.24, BuildID[sha1]=862ee37793af334043b423ba50ec91cfa132260a, not stripped
$ strings crackme4
/lib64/ld-linux-x86-64.so.2
libc.so.6
puts
...
password OK
password "%s" not OK
Usage : %s password
This time the string is hidden and we used strcmp
...
Nothing special between strings, but we know, binary is using strcmp to compare “passwords”
$ ./crackme4
Usage : ./crackme4 password
This time the string is hidden and we used strcmp
$ ./crackme4 AAA
password "AAA" not OK
Try to disassemble it and find place, where strcmp is called.
$ objdump -D crackme4 | grep call | grep strcmp
4006d5: e8 46 fe ff ff callq 400520 <strcmp@plt>
Prepare gdb_cmd file with following content:
break * 0x4006D5
run aaa
x/s $rax
Let’s start gdb with commands from file gdb_cmd
$ gdb -x gdb_cmd ./crackme4
GNU gdb (GDB) 10.1
...
Undefined command: "import". Try "help".
Reading symbols from ./crackme4...
(No debugging symbols found in ./crackme4)
Breakpoint 1 at 0x4006d5
Breakpoint 1, 0x00000000004006d5 in compare_pwd ()
0x7fffffffe440: "my_m0r3_secur3_pwd"
(gdb)
We can verify this password with the application crackme4
$ ./crackme4 my_m0r3_secur3_pwd
password OK
crackme_5
$ file crackme5
crackme5: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=a426dcf8ed3de8cb02f3ee4f38ee36b4ed568519, not stripped
Again nothing special in strings so I will not give you output of strings command here now. Let’s look into function names which application is using
$ gdb crackme5
GNU gdb (GDB) 10.1
...
Reading symbols from crackme5...
(No debugging symbols found in crackme5)
(gdb) info functions
All defined functions:
Non-debugging symbols:
0x0000000000400528 _init
0x0000000000400560 strncmp@plt
0x0000000000400570 puts@plt
0x0000000000400580 strlen@plt
0x0000000000400590 __stack_chk_fail@plt
0x00000000004005a0 __libc_start_main@plt
0x00000000004005b0 atoi@plt
0x00000000004005c0 __isoc99_scanf@plt
0x00000000004005d0 __gmon_start__@plt
0x00000000004005e0 _start
0x0000000000400610 deregister_tm_clones
0x0000000000400650 register_tm_clones
0x0000000000400690 __do_global_dtors_aux
0x00000000004006b0 frame_dummy
0x00000000004006d6 strcmp_
0x0000000000400773 main
0x000000000040086e check
0x00000000004008d0 __libc_csu_init
0x0000000000400940 __libc_csu_fini
0x0000000000400944 _fini
Okay, looks like strncmp is using for comparing password and your input, so we can override this function, let’s create preload.c file with following content:
#define _GNU_SOURCE
#include <stdio.h>
#include <dlfcn.h>
int strncmp(const char *s1, const char *s2, size_t n) {
printf("S1: [%s], S2: [%s]\n", s1, s2);
int (*original_strcmp)(const char*, const char*, size_t);
original_strcmp = dlsym(RTLD_NEXT, "strcmp");
return (*original_strcmp)(s1, s2, n);
}
Now compile our code and run crackme5 with following parameters to load our library:
$ gcc -Wall -fPIC -shared -o preload.so preload.c -ldl
$ LD_PRELOAD=./preload.so ./crackme5
Enter your input:
AAA
S1: [AAA], S2: [OfdlDSA|3tXb32~X3tX@sX`4tXtz]
Always dig deeper
Nice :) we have another flag.
crackme_6
$ file crackme6
crackme6: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 2.6.24, BuildID[sha1]=022f1a8e479cab9f7263af75bcdbb328bda7f291, not stripped
When we look into functions, we can see function called my_secure_test there.
$ gdb ./crackme6
GNU gdb (GDB) 10.1
...
Reading symbols from ./crackme6...
(No debugging symbols found in ./crackme6)
(gdb) info functions
All defined functions:
Non-debugging symbols:
0x0000000000400418 _init
0x0000000000400450 puts@plt
0x0000000000400460 printf@plt
0x0000000000400470 __libc_start_main@plt
0x0000000000400480 __gmon_start__@plt
0x0000000000400490 _start
0x00000000004004c0 deregister_tm_clones
0x00000000004004f0 register_tm_clones
0x0000000000400530 __do_global_dtors_aux
0x0000000000400550 frame_dummy
0x000000000040057d my_secure_test
0x00000000004006d1 compare_pwd
0x0000000000400711 main
0x0000000000400760 __libc_csu_init
0x00000000004007d0 __libc_csu_fini
0x00000000004007d4 _fini
This function is starting on address 0x040057d
and finishing on address 0x04006d0
,
so let’s find all cmp
instructions between these two addresses
$ objdump -D crackme6 | egrep -e "4005|4006" | grep "cmp "
400597: 3c 31 cmp $0x31,%al
4005bf: 3c 33 cmp $0x33,%al
4005e7: 3c 33 cmp $0x33,%al
40060f: 3c 37 cmp $0x37,%al
400637: 3c 5f cmp $0x5f,%al
40065f: 3c 70 cmp $0x70,%al
400684: 3c 77 cmp $0x77,%al
4006a9: 3c 64 cmp $0x64,%al
When we convert hex values to characters in ASCII table, we get 1337_pwd
$ ./crackme6 1337_pwd
password OK
crackme_7
Now we can look on crackme7 binary
$ file crackme7
crackme7: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=7ee4206d91718e7b0bef16a7c03f8fa49c4a39e7, not stripped
Again, nothing special in binary strings, so we look into functions
$ r2 crackme7
-- Mess with the best, Die like the rest
[0x080483c0]> aaa
...
[0x080483c0]> afl
0x080483c0 1 33 entry0
0x08048380 1 6 sym.imp.__libc_start_main
0x08048400 4 43 sym.deregister_tm_clones
0x08048430 4 53 sym.register_tm_clones
0x08048470 3 30 sym.__do_global_dtors_aux
0x08048490 4 43 -> 40 entry.init0
0x080486a6 4 149 sym.giveFlag
0x080487a0 1 2 sym.__libc_csu_fini
0x080483f0 1 4 sym.__x86.get_pc_thunk.bx
0x080487a4 1 20 sym._fini
0x08048740 4 93 sym.__libc_csu_init
0x080484bb 20 491 main
0x08048324 3 35 sym._init
0x08048360 1 6 sym.imp.printf
0x08048370 1 6 sym.imp.puts
0x08048390 1 6 sym.imp.memset
0x080483a0 1 6 sym.imp.__isoc99_scanf
Basicaly we want to call function sym.giveFlag on address 0x080486a6
,
so we need to find where the function is called
[0x080483c0]> axt sym.giveFlag
main 0x804867c [CALL] call sym.giveFlag
Okay, so function is called in function main

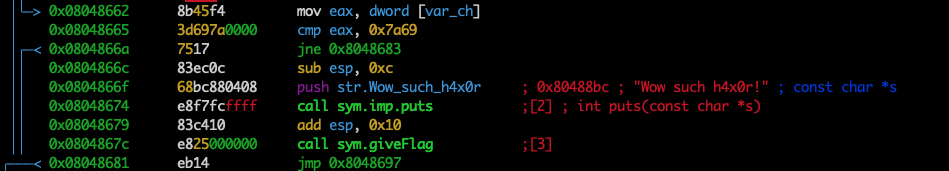

[0x080483c0]> pdf @ main
you can see compare cmp eax, 0x7a69
instruction near before calling giveFlag function
and again when we convert 7a69
hex to decimal,
then we have a result.
$ ./crackme7
Menu:
[1] Say hello
[2] Add numbers
[3] Quit
[>] 31337
Wow such h4x0r!
flag{much_reversing_very_ida_wow}
crackme_8
Okay, now we have last one so let’s get basic informations
$ file crackme8
crackme8: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=fef76e38b5ff92ed0d08870ac523f9f3f8925a40, not stripped
$ ./crackme8
Usage: ./crackme8 password
$ ./crackme8 abcdef
Access denied.
$ r2 crackme8
-- 256 colors ought to be enough for anybody
[0x080483a0]> aaa
...
[0x080483a0]> afl
0x080483a0 1 33 entry0
0x08048360 1 6 sym.imp.__libc_start_main
0x080483e0 4 43 sym.deregister_tm_clones
0x08048410 4 53 sym.register_tm_clones
0x08048450 3 30 sym.__do_global_dtors_aux
0x08048470 4 43 -> 40 entry.init0
0x08048524 4 149 sym.giveFlag
0x08048620 1 2 sym.__libc_csu_fini
0x080483d0 1 4 sym.__x86.get_pc_thunk.bx
0x08048624 1 20 sym._fini
0x080485c0 4 93 sym.__libc_csu_init
0x0804849b 6 137 main
0x08048300 3 35 sym._init
0x08048340 1 6 sym.imp.printf
0x08048350 1 6 sym.imp.puts
0x08048370 1 6 sym.imp.memset
0x08048380 1 6 sym.imp.atoi
[0x080483a0]> axt sym.giveFlag
main 0x8048512 [CALL] call sym.giveFlag

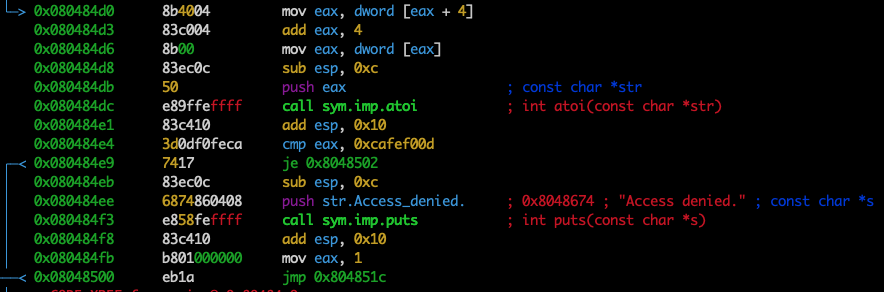

[0x080483a0]> pdf @ main
You can see on address 0x080484e4
instruction cmp eax, 0xcafef00d
so, now we can prepare gdb commands.
Create file called gdb_cmd with following content:
break * 0x080484E4
r 1
set $eax=3405705229
c
Btw, decimal value 3405705229 in $eax
register is converted from cafef00d hex.
Now, we can run binary as follows:
$ gdb -x gdb_cmd ./crackme8
GNU gdb (GDB) 10.1
...
Undefined command: "import". Try "help".
Reading symbols from ./crackme8...
(No debugging symbols found in ./crackme8)
Breakpoint 1 at 0x80484e4
Breakpoint 1, 0x080484e4 in main ()
Access granted.
flag{at_least_this_cafe_wont_leak_your_credit_card_numbers}
[Inferior 1 (process 1537622) exited normally]
(gdb)
Done, we have the last flag we need. h4ppy r3v3r5e! ;)
